Industrial flanges for process, energy, chemical, petrochemical, oil & gas and general industrial piping systems. We supply various types of flanges across a range of carbon steel, low-temperature carbon steel, alloy steel and stainless steel materials.
Common questions about flange types, standards, pressure classes, materials and technical requirements.

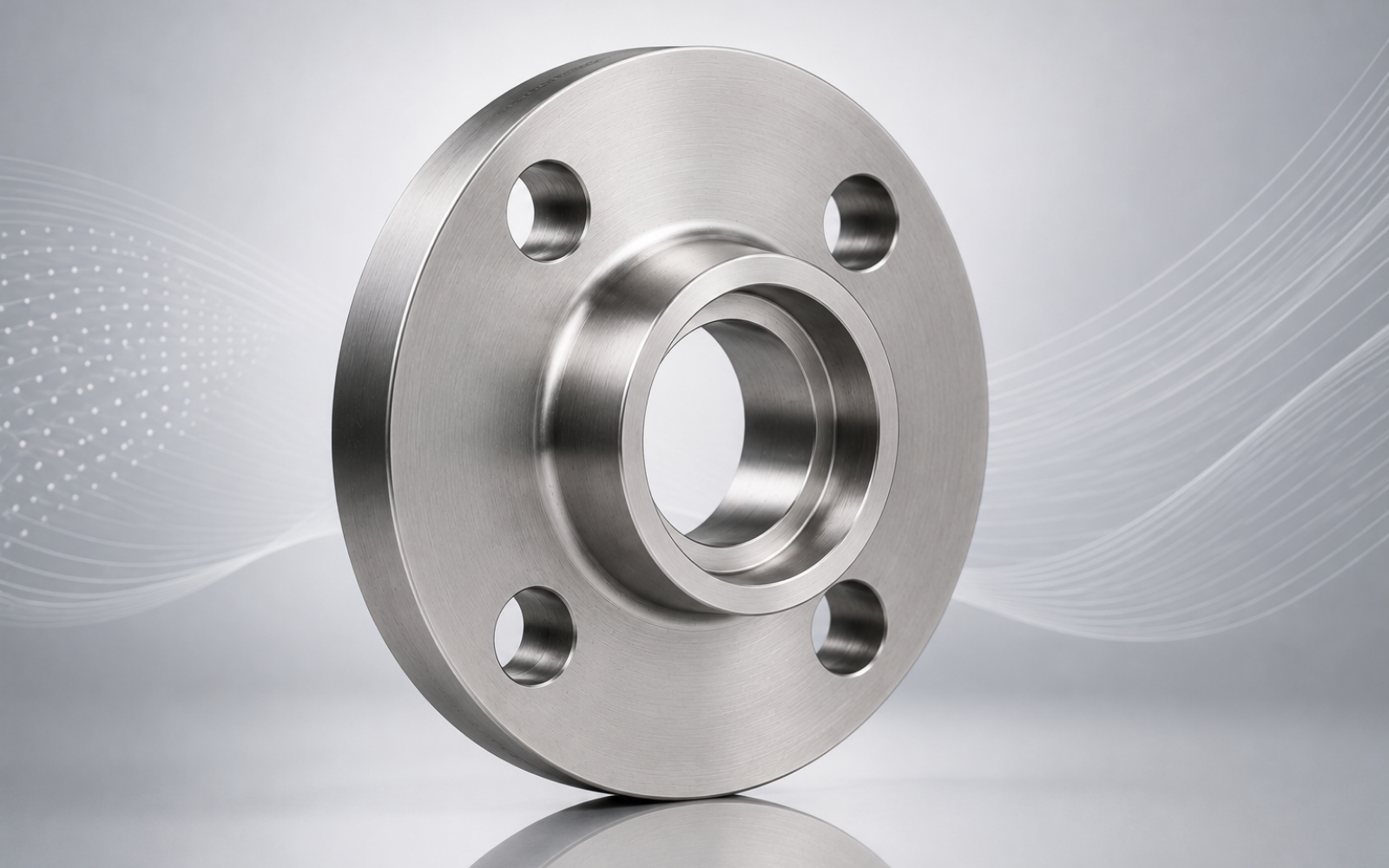

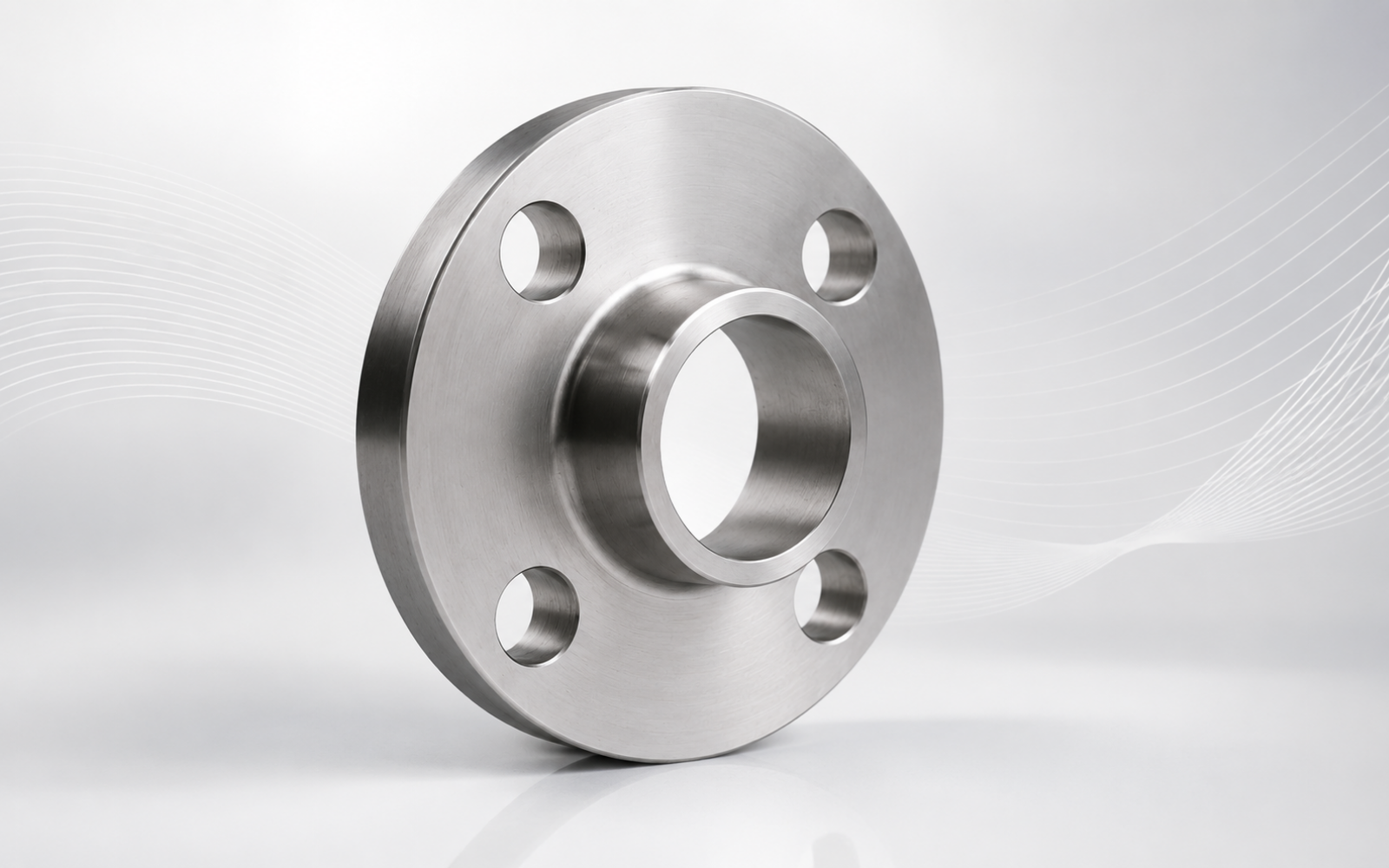

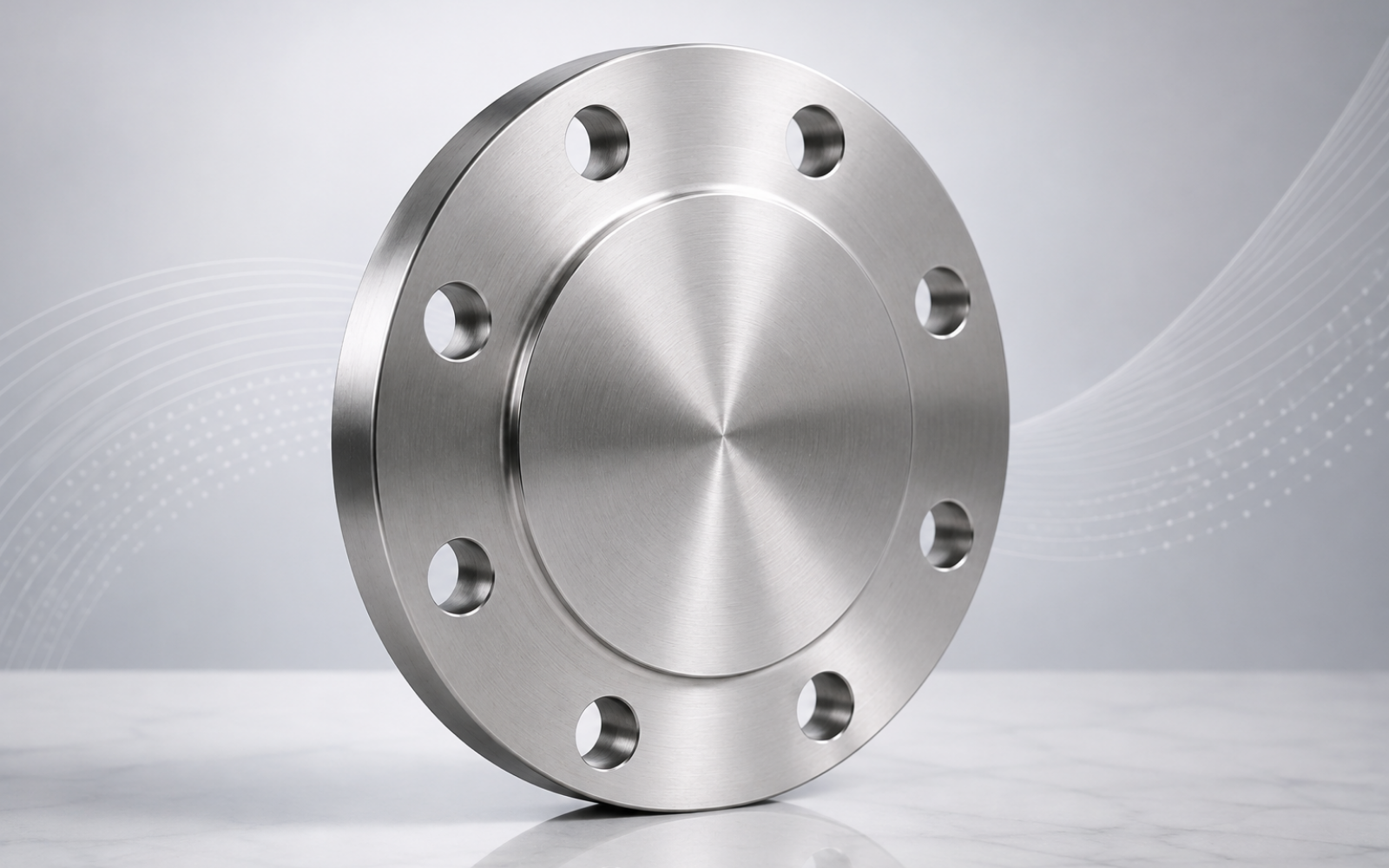

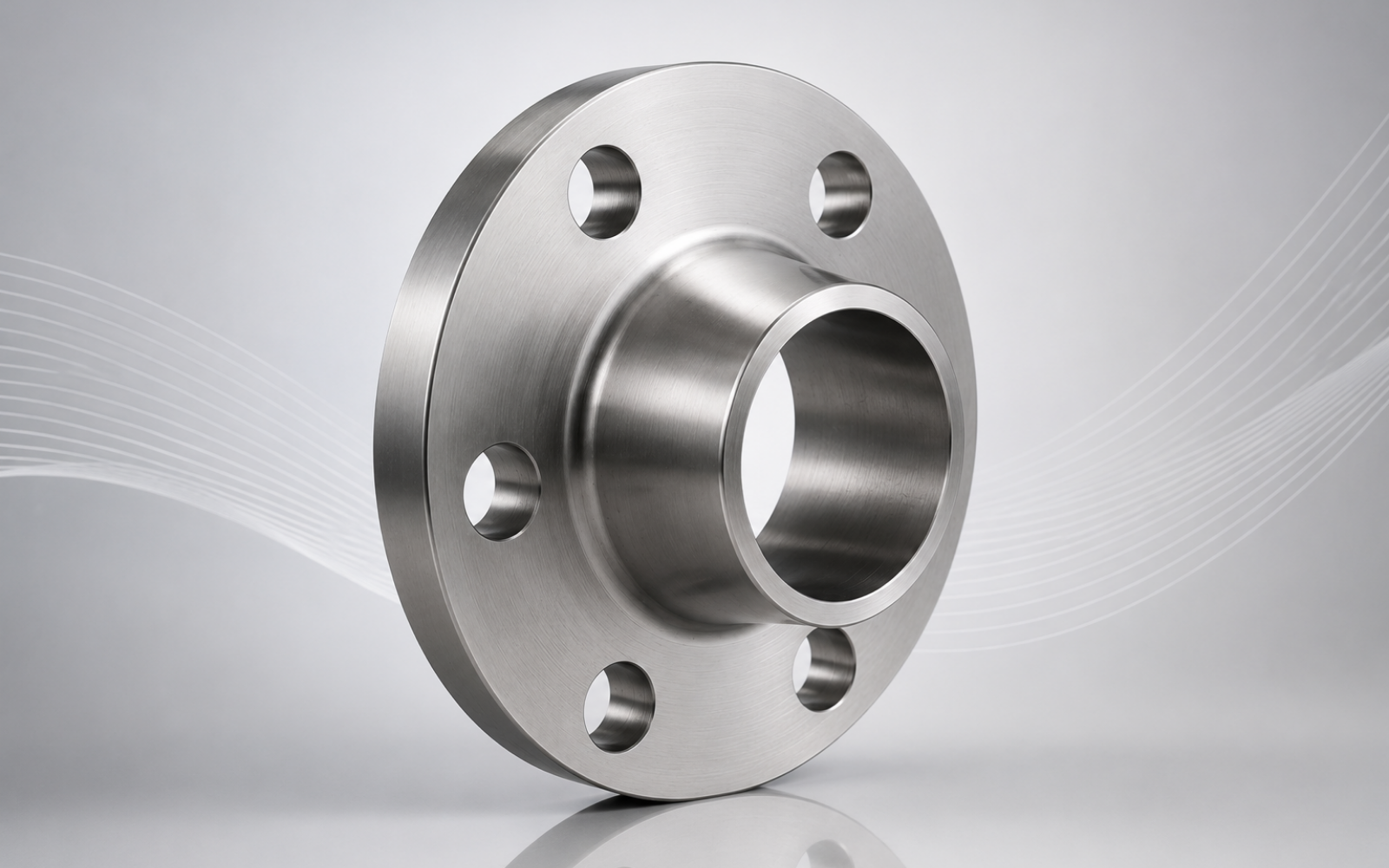

We supply common industrial flange types including weld neck, slip-on, blind, socket-weld and lap-joint flanges. Flanges can be sourced in different pressure classes, sizes, facing configurations and material grades according to the applicable piping specification.
Flanges can be supplied to applicable ASME standards, including ASME B16.5 for commonly used pipe flanges and ASME B16.47 where applicable. Typical pressure classes include Class 150 and Class 300, with other pressure ratings available against specific project requirements.
Our core flange materials include carbon steel, low- temperature carbon steel and stainless steel. Common specifications include ASTM A105, ASTM A350 LF2 and ASTM A182 grades such as F304 and F316, subject to the required flange type, size and specification.
Yes. Flanges can be supplied according to the required facing configuration, bore, dimensions, pressure class and applicable standard. Common facing requirements include raised face (RF), flat face (FF) and ring-type joint (RTJ) where applicable. Requirements should be specified in the enquiry or purchase order.
Yes. Flanges can be supplied together with compatible gaskets and bolting as part of a consolidated piping component requirement. Buyers can submit a mixed Bill of Materials containing different flange types, sizes, pressure classes, gaskets and fasteners, and we can review the complete requirement for a consolidated quotation.
