Home / Industrial Fasteners / Socket Head Cap Screws
ON THIS PAGE
INDUSTRIAL FASTENER

Socket Head Cap Screws

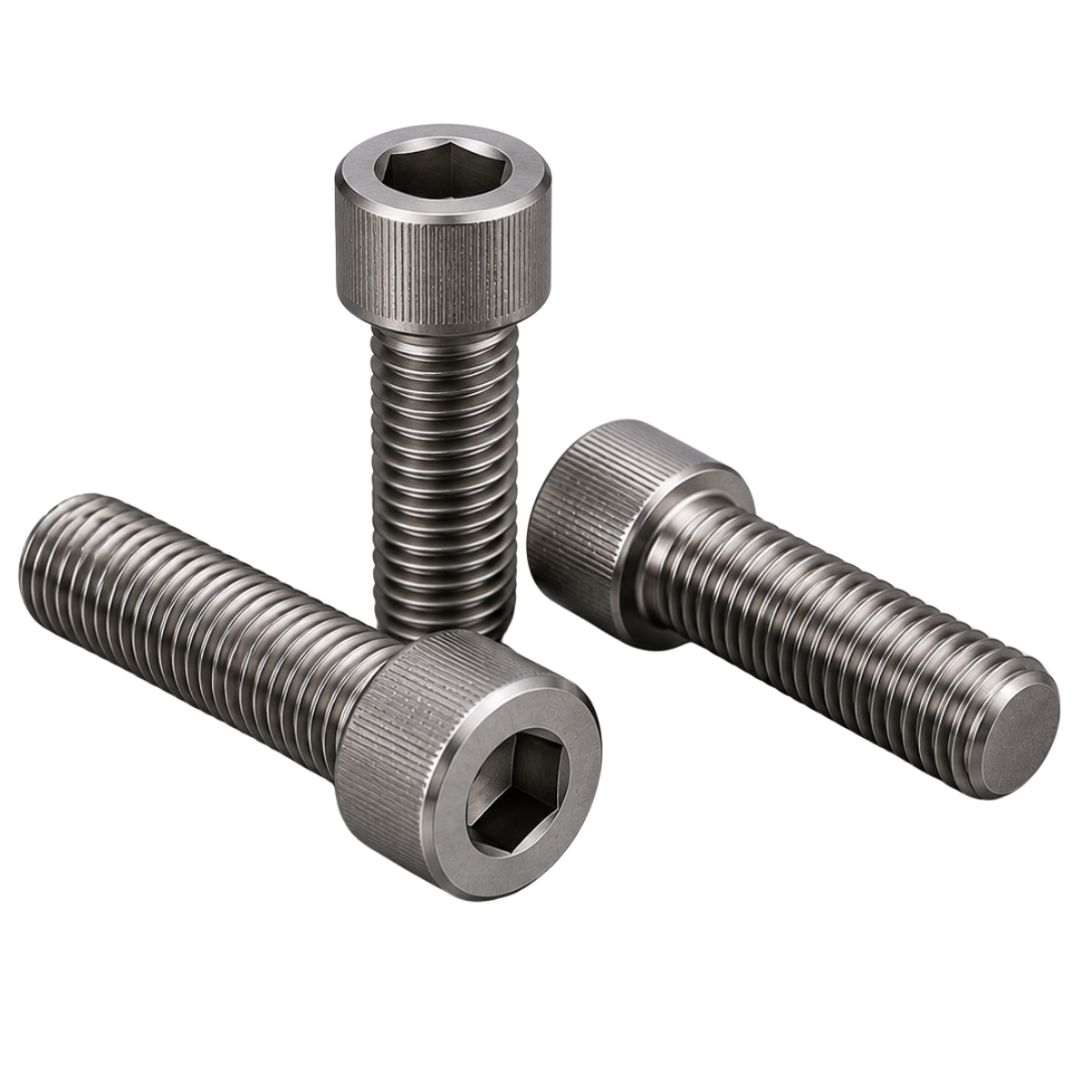

Socket head cap screws for industrial applications

Socket head cap screws with an internal hexagonal drive for compact mechanical assemblies, machinery, equipment, fabrication and industrial applications. Available in carbon steel, alloy steel and stainless steel grades according to the required specification.

Fastener Type Socket Head Cap Screw
Drive Internal Hex
Materials CS · Alloy · SS
Thread Metric · UNC · UNF
Request a Quote →
PRODUCT OVERVIEW

Compact high-strength fastening for industrial assemblies

Socket head cap screws are machine screws featuring a cylindrical head and an internal hexagonal drive. Their compact head geometry makes them suitable for applications where conventional hex-head fasteners may not provide sufficient clearance.

These fasteners are commonly used in machinery, equipment, fabricated assemblies, tooling, piping support systems and other mechanical applications requiring a compact and secure bolted connection.

Socket head cap screws can be supplied in carbon steel, alloy steel and stainless steel grades. Material and strength selection depends on the mechanical requirements and service environment.

Rhevon can source socket head cap screws according to the required diameter, length, thread, material grade, finish and quantity.

PRODUCT TYPE Socket Head Cap Screw

Compact internal-hex fasteners for machinery, equipment and industrial mechanical assemblies.

CONFIGURATIONS

Socket head cap screw configurations

Socket head cap screws can be supplied in different materials, grades, thread systems, dimensions and surface finishes according to the application.

01

Alloy Steel Socket Head Cap Screws

High-strength alloy steel socket head screws for demanding mechanical assemblies and equipment applications.

Material Alloy Steel
Drive Internal Hex
Application Machinery / Equipment
02

Carbon Steel Socket Head Cap Screws

Carbon steel socket head screws for general industrial assemblies, fabrication and maintenance applications.

Material Carbon Steel
Finish Plain / Zinc
Application General Engineering
03

Stainless Steel Socket Head Cap Screws

Stainless steel socket head screws for applications requiring improved corrosion resistance and material compatibility.

Material SS304 / SS316
Drive Internal Hex
Application Corrosive Environments
04

Metric & Imperial Threads

Socket head cap screws can be sourced with metric or unified thread systems according to equipment and project requirements.

Metric M6 – M20+
Imperial UNC / UNF
Supply Project Specific
MATERIALS & GRADES

Socket head cap screw materials

Material and strength grade should be selected according to the mechanical requirements, operating environment and applicable specification.

Material Typical Grade Finish Typical Application
Alloy Steel Class 12.9 / Project Spec. Plain / Black High-Strength Assemblies
Carbon Steel Property Class 8.8 Plain / Zinc General Engineering
Stainless Steel A2 / A4 Natural / Passivated Corrosion-Resistant Applications
Stainless Steel SS316 / Project Spec. Natural More Corrosive Environments
DIMENSIONAL DATA

Socket head cap screw dimensions

The source catalog does not publish a dimensional table for socket head cap screws.

Stock reference image for Socket head cap screw dimensions
REFERENCE DIAGRAM SLOT Stock image - replace with an approved dimensional drawing
REV 03 DIMENSIONAL REFERENCE Catalog coverage check - REV 03. Company-source dimensions are shown to 0.01 mm unless noted.

Catalog coverage

No unrelated fastener dimensions have been substituted
ProductREV 03 statusRequired next reference
Socket head cap screwDimensional table not includedApproved ISO 4762 / ASME B18.3 table or supplier drawing
Catalog notes

Select the governing standard, thread series, property class and tolerance before publishing dimensions.

The heavy-hex dimensions on catalog page 20 do not apply to socket head cap screws.

TECHNICAL PARAMETERS

Socket head cap screw specifications

Fastener Type Socket Head Cap Screw
Head Type Cylindrical
Drive Internal Hex
Materials Carbon · Alloy · Stainless Steel
Thread Metric · UNC · UNF
Size Range Project Specific
Finish Plain · Black · Zinc · Coated
Supply Individual / Bulk
APPLICATIONS

Typical industrial applications

Industrial Machinery
Mechanical Equipment
Fabricated Assemblies
Piping Supports
Tooling & Fixtures
Plant Maintenance
Engineering Assemblies
General Industrial Applications
QUALITY & DOCUMENTATION

Fasteners supplied to your specification

Socket head cap screws can be inspected and documented according to the applicable purchase specification, dimensional standard and material or property-class requirements.

01 Material verification
02 Diameter and length inspection
03 Thread inspection
04 Head dimension verification
05 Internal hex drive inspection
06 Surface finish verification
07 Marking and traceability
08 Inspection / material documentation where required
FOR PROCUREMENT TEAMS

Information required for quotation

Providing the following information helps us identify the correct socket head cap screw for your application.

01 · Fastener Type Socket Head Cap Screw
02 · Diameter Nominal Diameter
03 · Length Required Screw Length
04 · Grade Property Class / Material Grade
05 · Thread Metric / UNC / UNF
06 · Finish Plain / Black / Zinc / Coated
07 · Standard Applicable Dimensional Standard
08 · Quantity Required Quantity
FREQUENTLY ASKED QUESTIONS

Socket Head Cap Screw FAQ

Common procurement questions about socket head cap screws, grades, dimensions and applications.

Socket head cap screws are commonly used in machinery, equipment, tooling, fabricated assemblies and other mechanical applications where a compact fastener head and internal hex drive are advantageous.

The internal hex drive allows the screw to be tightened using a hex key or suitable internal-hex tool. The cylindrical head also provides a compact installation profile where surrounding clearance is limited.

Yes. Stainless steel socket head cap screws can be sourced in grades such as SS304 and SS316, depending on the required size, quantity and application.

A typical enquiry should include diameter, length, thread type, material or property class, applicable dimensional standard, surface finish and quantity. A drawing or specification can also be provided where available.

Yes. Socket head cap screws can be included in a mixed RFQ along with pipe fittings, flanges, gaskets and other fasteners.

HAVE A FASTENER REQUIREMENT?

Need socket head cap screws?

Share the diameter, length, thread, grade, finish and quantity. You can also submit your complete piping component requirement through a single RFQ.
